Check Before You Buy: Door Compatibility Is Everything
Before you even think about how to install a smart lock, you need to verify that your door is compatible. The three critical measurements are door thickness (standard 35-55mm, though some smart locks support up to 100mm with extended bolts), backset distance (the measurement from the door edge to the center of the bore hole—typically 60mm or 70mm), and cross-bore diameter (usually 38mm for cylindrical locks). Most modern smart locks are designed to fit standard prep doors, but if you have a mortise lock, a sliding glass door, or an unusually thick security door, your options narrow significantly. Checking these dimensions before purchasing saves you from the frustration of a smart lock that physically cannot fit your door. Many smart lock brands offer online compatibility guides—use them.
DIY Smart Lock Installation: Simpler Than You Think

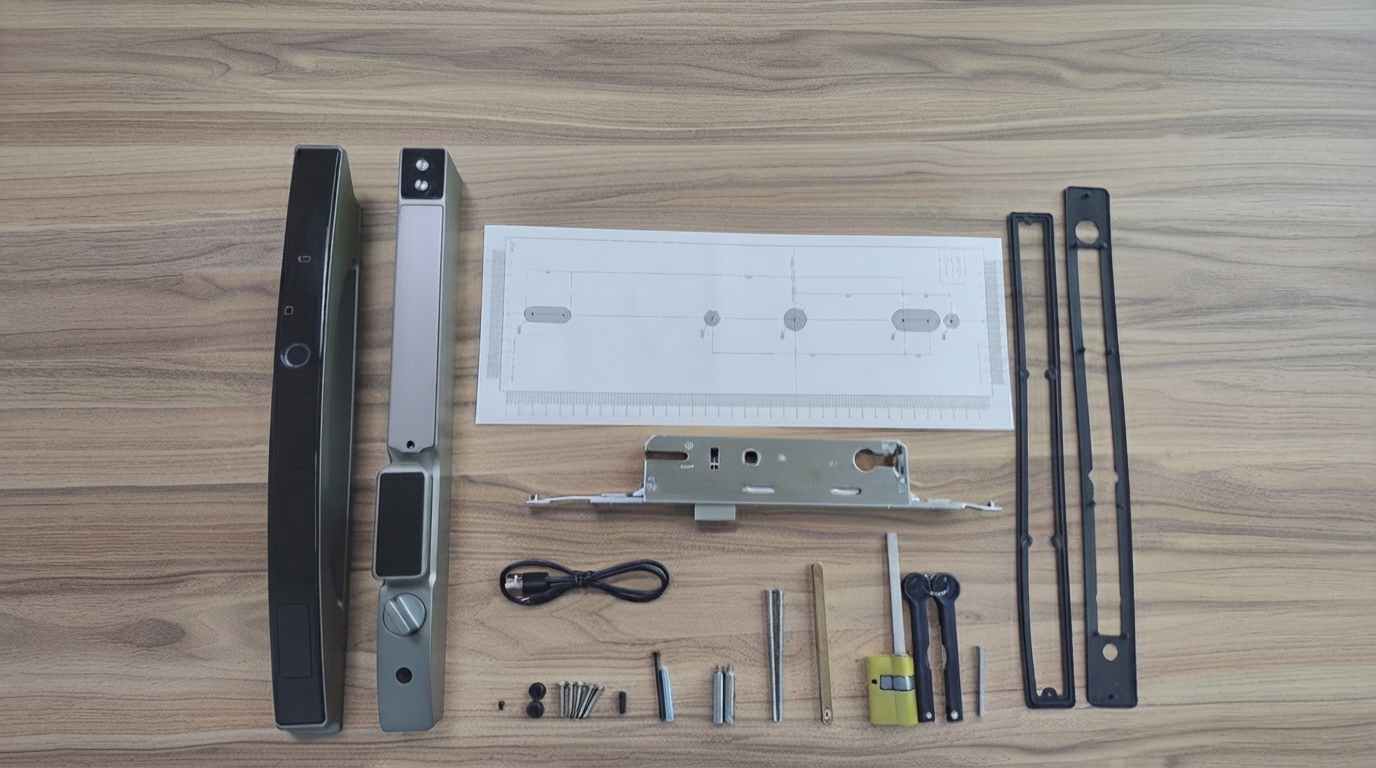

For standard cylindrical deadbolt doors, DIY smart lock installation is surprisingly approachable. Most smart lock kits include everything you need: the exterior keypad assembly, interior mounting plate, bolt mechanism, screws, and a template. The typical process takes 30 to 60 minutes with basic tools—a crosshead screwdriver, a tape measure, and possibly a drill if your door needs minor modifications. The key steps are: remove your old deadbolt, insert the new smart lock bolt mechanism, mount the exterior assembly through the cross-bore hole, secure the interior plate, and pair the lock with your smartphone via Bluetooth or WiFi. Many brands now offer step-by-step video guides in their apps, making the wireless smart lock setup process nearly foolproof. If you can hang a picture frame, you can likely install a cylindrical smart lock.
When to Call a Professional
Not every door is a simple swap. You should consider professional smart lock installation in several scenarios. First, mortise lock conversions: if your door uses a mortise lock body embedded in the door frame, replacing it with a smart mortise lock requires precise chiseling and alignment that most DIYers cannot achieve cleanly. Second, fiberglass or metal doors: these materials are difficult to drill accurately without specialized bits, and a misaligned hole means the lock body will sit crooked or fail to engage. Third, multi-point locking systems common in European and high-end doors require professional knowledge to integrate with smart lock motors. Finally, if your door needs a new cross-bore or the existing prep is non-standard, a locksmith or handyman with the right hole saw and jig will save you from ruining an expensive door. Professional installation typically costs $50 to $150 on top of the lock price—a worthwhile investment when the alternative is a botched DIY job.
Common Installation Mistakes to Avoid
Even experienced DIYers make mistakes during smart lock installation. The most common is misaligning the bolt with the strike plate on the door frame—if the bolt cannot fully extend, the lock will jam or fail to lock remotely. Always test the bolt travel before finalizing the install. Second, overtightening screws on the interior mounting plate can warp the circuit board inside, causing intermittent connectivity or button failures. Third, ignoring the door gap: if the gap between door and frame is too large, the bolt may not reach the strike plate at all, requiring an extended strike plate or door adjustment. Fourth, skipping the WiFi gateway setup means you lose remote access, real-time notifications, and firmware updates—essentially using your smart lock as a dumb keypad lock. Take the time to complete the full smart lock setup including app pairing and firmware updates before considering the job done.

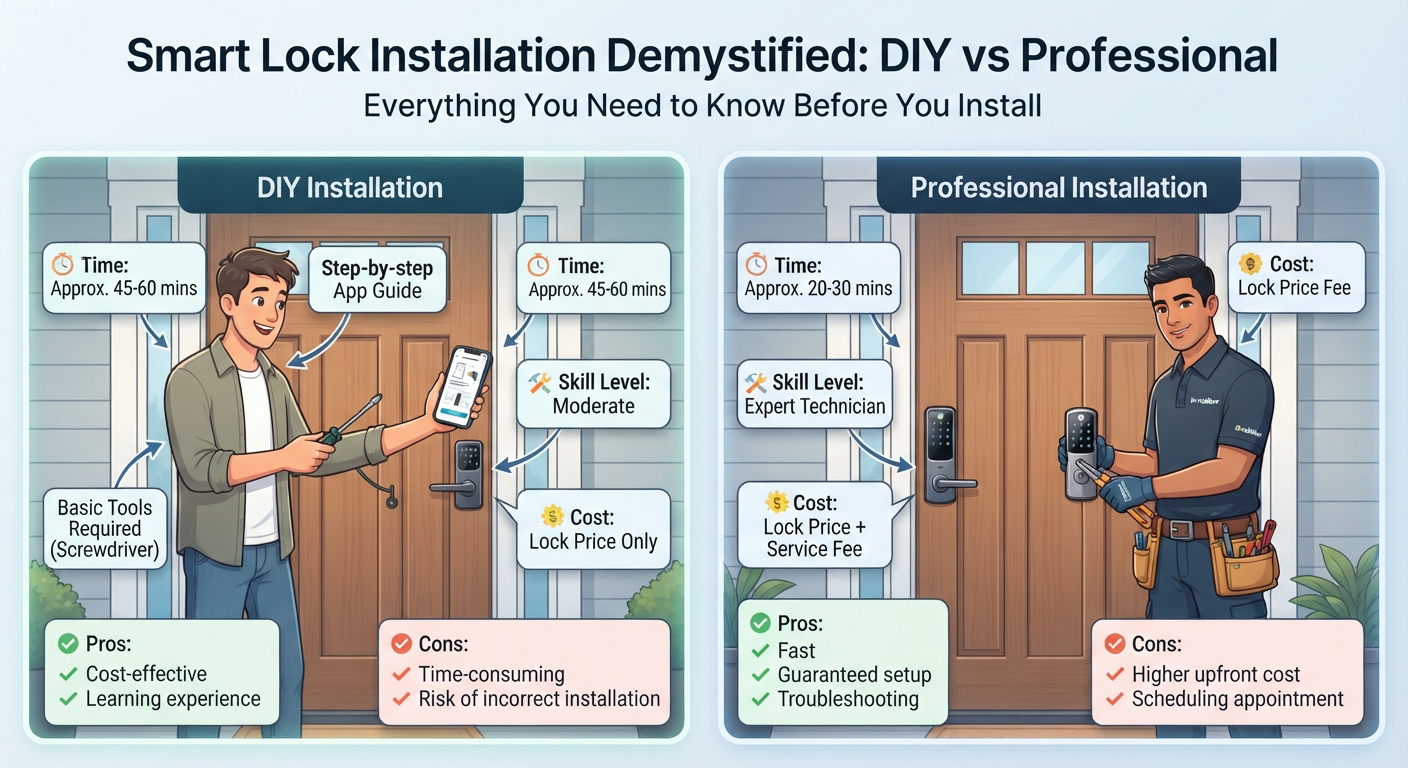

Smart Lock Installation Cost: DIY vs Professional
The cost difference is straightforward. DIY installation costs nothing but your time—most smart lock kits include all mounting hardware and batteries. Professional installation adds $50-$150 for a standard cylindrical door and $150-$300 for mortise or complex installations. Factor in potential door modification costs ($30-$80) if your door needs new bore holes or frame adjustments. The smart lock price itself ranges from $80 for basic keypad models to $400+ for premium biometric and WiFi-enabled locks. The total smart lock cost with professional installation on a standard door typically lands between $130 and $550. For most homeowners with standard doors, DIY is the clear winner—saving money while gaining familiarity with your new lock. For complex doors, the professional fee is cheap insurance against a ruined door or a poorly functioning lock.
Final Checklist Before You Install
Before starting your smart lock installation, run through this checklist: measure door thickness, backset, and cross-bore diameter; confirm the lock model supports your door type; watch the manufacturer installation video end to end; gather all tools before starting; have fresh batteries ready; ensure your WiFi network reaches the front door for models requiring connectivity; and plan the installation during daylight hours so you are not left with a half-installed lock after dark. A well-installed smart lock provides years of reliable keyless entry, remote access, and enhanced home security. Whether you choose DIY or professional installation, the key is matching the approach to your door type and your comfort level with tools. The right smart lock, properly installed, transforms your front door from the weakest point in your home security into its strongest.
