X3 Entry Door Smart Lock — Hidden Form, Revealed Security

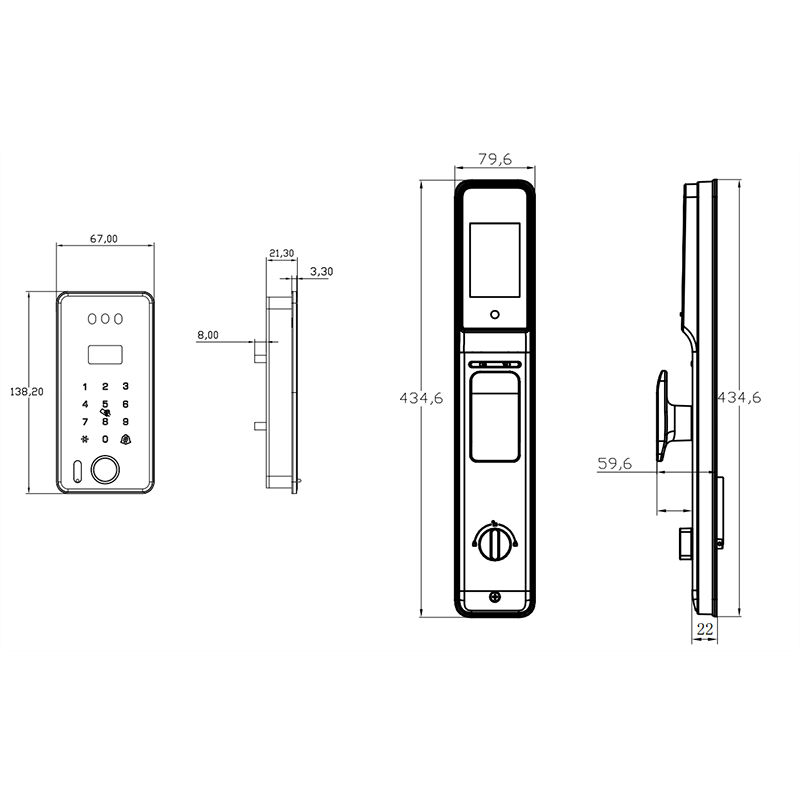

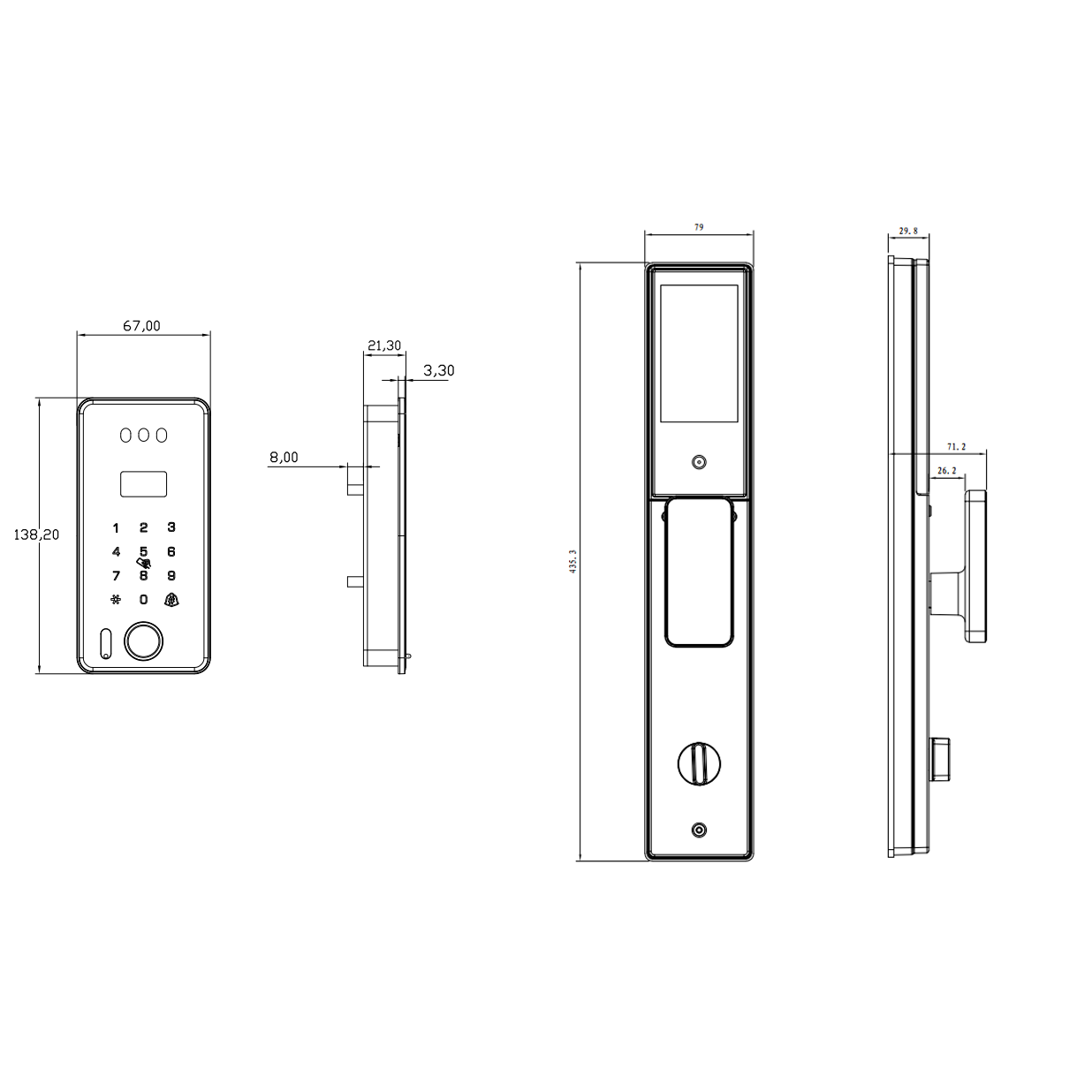

A 138.2×67mm steel seal embedded into the door's grain, Like ancient wax pressed flush on bamboo scrolls. Only the slightly raised crystal viewport and jade-smooth fingerprint zone. Remain as starlit folds in this planar world. Dual-lens infrared pierces night through glass, Palm-vein sensors hide within alloy matrix; When the lock's form retreats, true security emerges.
| Model | X3 | ||
| Material | Aluminum alloy | ||
| Surface technology | Painting | ||
| Color | Matte Black | ||
| Unlocking Methods | Outdoor | FaceId / Palm vein / Fingerprint / Password / iCcard / Mechanical key | |
| Indoor | Handle / Knob / Button | ||
| User capacity | FaceId/Palm vein | 50 | 300 in total |
| Fingerprint | 100 | ||
| Password | Up to 200 | ||
| iCcard | Up to 200 | ||
| Main power supply | 4200mA lithium battery | ||
| Battery life | 3 months | ||
| Emergency power supply | 5V power bank | ||
| Fingerprint sensor type | Semiconductor sensor | ||
| Working temperature | -25°C ~ +70°C | ||
| Working humidity | 15%RH ~ 93%RH | ||
| Door thickness | 38-120mm | ||
| Door types | Security doors, wooden doors, stainless steel doors, copper-clad doors, etc. | ||
| Compatible Lock Body Types | Single Point Lock/Multi-Point Lock/Double Hook Lock | ||
| Network | TUYA(optional) | ||
| Accessories | 6068 Single Point Lock Body * 1 | ||
| Silicone pad * 2 | |||
| IC card * 2 | |||
| Lock cylinder * 1 | |||
| Hardware pack * 1 | |||
| Instruction manual * 1 | |||
| Drilling template * 1 | |||
| USB Type-C charging cable * 1 | |||
·Tuya video intercom: See at First Knock, Talk in Real Time - Your Eyes at the Door, Instantly.
·3D facial recognition and palm verification: enable hands-free access
·IP66 Certified Protection: Sandstorm & Rain Proof
·12-Language Voice Guide: Instant Clarity for Global Users
·Semiconductor Sensor: Live fingerprint scanning, blocks fake prints
·Security Features: Dual Authentication & Virtual Password Shield & Anti-pry alarm
