· IP68 Certified Protection: Sandstorm & fully submersible
· Semiconductor Sensor: Live fingerprint scanning, blocks fake prints
· Dual Authentication Defense: Fingerprint + Code/Card Unlock
· Virtual Password Shield: Hide real code among random digits, against peeping
· Bottom-Mounted Cylinder: Broad compatibility
· Locked from Both Sides. Secured from Every Way
| Model | T1 | ||
| Material | Aluminum alloy | ||
| Surface technology | Electroplating/Painting | ||
| Color | Black/Red Bronze | ||
| Unlocking Methods | Outdoor | Fingerprint / Password / iCcard / Mechanical key | |
| Indoor | Fingerprint / Password / iCcard / Mechanical key | ||
| User capacity | Fingerprint | 100 | 300 in total |
| Password | Up to 300 | ||
| iCcard | Up to 300 | ||
| Main power supply | 4800mA Lithium battery | ||
| Battery life | 6 months | ||
| Emergency power supply | 5V power bank | ||
| Fingerprint sensor type | Semiconductor sensor | ||
| Working temperature | -25°C ~ +60°C | ||
| Working humidity | 45%RH ~ 90%RH | ||
| Door thickness | 38-120mm | ||
| Door types | Thermal break aluminum door, KFC door, sliding door, translation door, framed glass door | ||
| Compatible Lock Body Types | Single Point Lock/Multi-Point Lock/Double Hook Lock | ||
| Network | TUYA(Optional) | ||
| Accessories | 3585 Single Point Lock Body * 1 | ||
| Silicone pad * 2 | |||
| IC card * 2 | |||
| Hardware pack * 1 | |||
| Instruction manual * 1 | |||
| Drilling template * 1 | |||
| 4800mA lithium battery * 1 | |||
| External battery room * 1 | |||

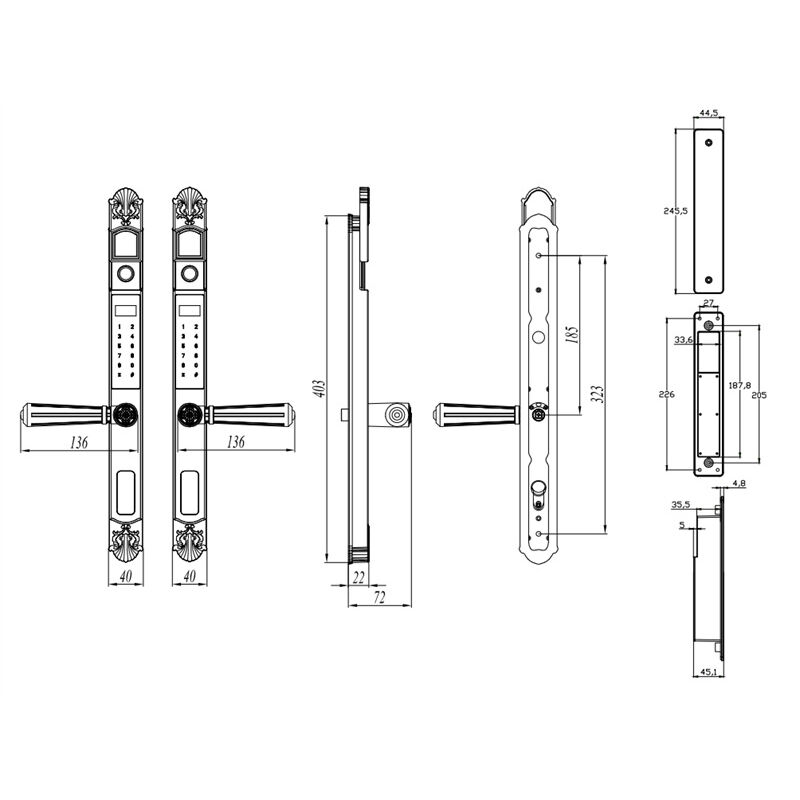

T1 Semi-automatic Dual Sided IP68 Courtyard Smart Lock
Dual-Side Patio Lock: Classic elegance meets modern security. IP68 waterproof (fully submersible), slide-protected fingerprint sensor, dual-side access — your patio, protected inside and out.
